使用c#中的HttpWebRequest实现12306余票查询

发表于 分类于 阅读次数：
本文字数： 16k 阅读时长 ≈ 26 分钟

准备工作

  1. 下载用于解析JSON的类库(Newtonsoft.Json.dll)(下载地址:Newtonsoft.Json.dll)；
  2. 在C#项目中添加对其的引用。
  3. 在程序中导入命名空间:
    1
    2
    3
    4
    5
    using Newtonsoft.Json;
    using Newtonsoft.Json.Linq;
    using System.Net;
    using System.Text.RegularExpressions;
    using System.Xml;

思路

API地址

在浏览器中打开12306主页，点击余票查询，并使用浏览器中的开发者工具，进行抓包。这里，我们查询的是2018.06.25的上海至长沙的车票信息。

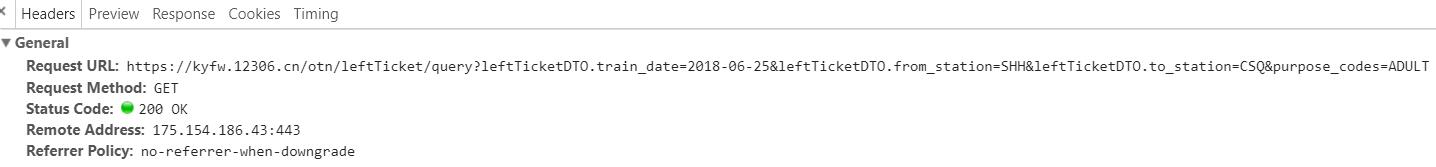

开发者工具抓包
此时浏览器发送请求的地址为：
https://kyfw.12306.cn/otn/leftTicket/query?leftTicketDTO.train_date=2018-06-25&leftTicketDTO.from_station=SHH&leftTicketDTO.to_station=CSQ&purpose_codes=ADULT
由此,我们不难分析出API地址为：

1
2
string url="https://kyfw.12306.cn/otn/leftTicket/query?leftTicketDTO.train_date={0}&leftTicketDTO.from_station={1}&leftTicketDTO.to_station={2}&purpose_codes={3}";
url=string.Format(url,date,from,to,id);

其中，date代表出发日(格式为yyyy-MM-dd),from代表出发站的代码，to代表到达站的代码，id代表车票类型(成人为ADULT,学生为OX00);

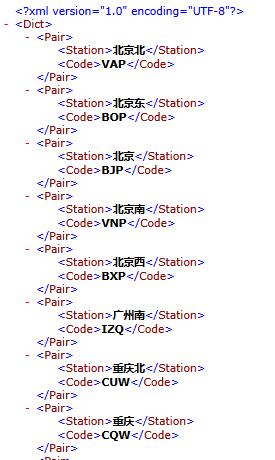

车站代码

车站对应的代码可在此下载:https://kyfw.12306.cn/otn/resources/js/framework/station_name.js?station_version=1.9055
我们可以使用正则表达式从中提取出关键信息，并保存在一个XML文档中，便于以后的使用。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
     public static void StationNameXml()
     {
         string nowpath = Environment.CurrentDirectory;
         if (Directory.Exists(nowpath+"/Data")==false)
             Directory.CreateDirectory(nowpath + "/Data");//创建新路径
         if (File.Exists(nowpath + "/Data/StationName.xml") == true)
             return;

HttpWebRequest request;
  		HttpWebResponse response;

         string url=@"https://kyfw.12306.cn/otn/resources/js/framework/station_name.js?station_version=1.9055";

         request = (HttpWebRequest)WebRequest.Create(url);
         request.Method = "GET";
         request.Credentials = CredentialCache.DefaultCredentials;
         request.UserAgent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36";

         string str = string.Empty;
         try
         {
             response = (HttpWebResponse)request.GetResponse();
             if (response.StatusCode == HttpStatusCode.OK)
             {
                 StreamReader sr = new StreamReader(response.GetResponseStream(), Encoding.GetEncoding("UTF-8"));
                 str = sr.ReadToEnd();
                 sr.Close();
                 response.Close();//关闭response响应流
             }
             else
                 throw new Exception();
         }
         catch(Exception e)
         {
	Console.WriteLine(e.Message);
         }

         string pattern = @"@\S{2,5}?[|](?<Name>\S{1,8}?)[|](?<Code>\S{3,5}?)[|]";
         Regex r = new Regex(pattern, RegexOptions.ExplicitCapture);

         XmlDocument xmldoc = new XmlDocument();
         XmlDeclaration xmldecl;

         xmldecl = xmldoc.CreateXmlDeclaration("1.0", "UTF-8", null);//加入XML的声明段落
         xmldoc.AppendChild(xmldecl);

         XmlElement root = xmldoc.CreateElement("", "Dict", "");//加入一个根元素
         xmldoc.AppendChild(root);

         MatchCollection mc = r.Matches(str);
         foreach (Match m in mc)
         {
             GroupCollection group = m.Groups;
             XmlNode node = xmldoc.CreateNode(XmlNodeType.Element, "Pair", null);

             XmlNode temp = xmldoc.CreateNode(XmlNodeType.Element, "Station", null);
             temp.InnerText = group["Name"].Value;
             node.AppendChild(temp);

             XmlNode temp2 = xmldoc.CreateNode(XmlNodeType.Element, "Code", null);
             temp2.InnerText = group["Code"].Value;
             node.AppendChild(temp2);

             root.AppendChild(node);
         }
         xmldoc.Save(nowpath+"/Data/"+"StationName.xml");
     }

车站代码
依据中文车站名获取对应车站代码的方法为:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
private static string StationCode(string StationName)
{
    XmlDocument doc = new XmlDocument();
    doc.Load(Environment.CurrentDirectory + "/Data/StationName.xml");
    XmlNodeList data = doc.DocumentElement.ChildNodes;
    foreach (XmlNode node in data)
    {
        XmlElement xe = (XmlElement)node;
        XmlNodeList xnl0 = xe.ChildNodes;
        string s = xnl0.Item(0).InnerText;
        if(s==StationName)
        {
            return xnl0.Item(1).InnerText;
        }
    }
    return string.Empty;
}

数据模型

为了存储查询结果，我们需要构建一个车票的数据模型，具体如下；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
  public class Ticket
   {
       #region 数据模型
       private string trainid=string.Empty;//车次
       private string fromstation = "--";//出发站
       private string totation = "--";//到达站
       private string ticketdate = string.Empty;//车票日期
       private string starttime = "--";//发车时间
       private string arrivetime = "--";//到达时间
       private string lastedtime = "--";//历时
       private string tzNum = "--";//特等座
       private string ydNum = "--";//一等座
       private string edNum = "--";//二等座
       private string grwNum = "--";//高级软卧
       private string rwNum = "--";//软卧
       private string dwNum = "--";//动卧
       private string ywNum = "--";//硬卧
       private string rzNum = "--";//软座
       private string yzNum = "--";//硬座
       private string wzNum = "--";//无座
       private string qtNum = "--";//其他
       private string identity = string.Empty;//车票类型(学生/成人)
       public string TrainId { get { return trainid; } set { trainid = value; } }
       public string FromStation { get { return fromstation; } set { fromstation = value; } }
       public string ToStation { get { return totation; } set { totation = value; } }
       public string TicketDate { get { return ticketdate; } set { ticketdate = value; } }
       public string StartTime { get { return starttime; } set { starttime = value; } }
       public string ArriveTime { get { return arrivetime; }set { arrivetime = value; } }
       public string LastedTime { get { return lastedtime; } set { lastedtime = value; } }
       public string TzNum { get { return tzNum; } set { tzNum = value; } }
       public string YdNum { get { return ydNum; } set { ydNum = value; } }
       public string EdNum { get { return edNum; } set { edNum = value; } }
       public string GrwNum { get { return grwNum; } set { grwNum = value; } }
       public string RwNum { get { return rwNum; } set { rwNum = value; } }
       public string DwNum { get { return dwNum; } set { dwNum = value; } }
       public string YwNum {get{ return ywNum; }set{ ywNum = value; } }
       public string RzNum {get{ return rzNum; }set{ rzNum = value; } }
       public string YzNum {get{ return yzNum; }set{ yzNum = value; } }
       public string WzNum {get{ return wzNum; }set{ wzNum = value; } }
       public string QtNum {get{ return qtNum; }set{ qtNum = value; } }
       public string Identity { get { return identity; }set { identity = value; } }
       #endregion
       public Ticket() { }

       public Dictionary<string, string> getMap()
       {
           Dictionary<string, string> result = new Dictionary<string, string>();
           result.Add("车次", trainid);
           result.Add("出发站", FromStation);
           result.Add("到达站", ToStation);
           result.Add("发车时间", StartTime);
           result.Add("到达时间", ArriveTime);
           result.Add("历时", LastedTime);
           result.Add("特等座", TzNum);
           result.Add("一等座", YdNum);
           result.Add("二等座", EdNum);
           result.Add("高级软卧", GrwNum);
           result.Add("软卧", RwNum);
           result.Add("动卧", DwNum);
           result.Add("硬卧", YwNum);
           result.Add("软座", RzNum);
           result.Add("硬座", YzNum);
           result.Add("无座", WzNum);
           result.Add("其他", QtNum);
           return result;
       }
}

解析JSON

JSON格式的字符串
返回的报文为一个JSON格式的字符串，里面包含有各类车票信息、发车时间以及历时，为了对其进行解析，我们需要下载一个用于解析JSON的类库(下载地址:Newtonsoft.Json.dll)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
private static Ticket[] SpiderTicket(string date, string from, string to, string id)
 {
     HttpWebRequest request;
     HttpWebResponse response;

     string url = "https://kyfw.12306.cn/otn/leftTicket/query?leftTicketDTO.train_date={0}&leftTicketDTO.from_station={1}&leftTicketDTO.to_station={2}&purpose_codes={3}";
     url = string.Format(url, date, from, to, id);

     request = (HttpWebRequest)WebRequest.Create(url);
     request.Method = "GET";
     request.Credentials = CredentialCache.DefaultCredentials;
     request.UserAgent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36";

     string str = string.Empty;
     try
     {
         response = (HttpWebResponse)request.GetResponse();
         if (response.StatusCode == HttpStatusCode.OK)
         {
             StreamReader sr = new StreamReader(response.GetResponseStream(), Encoding.GetEncoding("UTF-8"));
             str = sr.ReadToEnd();
             sr.Close();
             response.Close();//关闭response响应流
         }
         else
             throw new Exception();
     }
     catch (Exception e)
     {
         Console.WriteLine(e.Message);
     }

     Dictionary<string, string> map=new Dictionary<string, string>();//保存返回的JSON串中的车站代码与车站名之间的映
     ArrayList AllTicket = new ArrayList();//所有的车票信息

     JObject jo = (JObject)JsonConvert.DeserializeObject(str);
     JToken record = jo["data"]["map"];
     foreach (JProperty item in record)
     {
         map.Add(item.Name.ToString(), item.Value.ToString());
     }

     record = jo["data"]["result"];
     foreach (string s in record)
     {
         string[] result = s.Split('|');
         Ticket t = new Ticket();
         t.TrainId = result[3];
         t.FromStation = map[result[6]];
         t.ToStation = map[result[7]];
         t.StartTime = result[8];
         t.ArriveTime = result[9];
         t.LastedTime = result[10];
         t.TicketDate = result[13];
         t.DwNum = result[33] != "" ? result[33] : t.DwNum;
         t.TzNum = result[32] != "" ? result[32] : t.TzNum;
         t.YdNum = result[31] != "" ? result[31] : t.YdNum;
         t.EdNum = result[30] != "" ? result[30] : t.EdNum;
         t.YzNum = result[29] != "" ? result[29] : t.YzNum;
         t.YwNum = result[28] != "" ? result[28] : t.YwNum;
         t.WzNum = result[26] != "" ? result[26] : t.WzNum;
         t.RzNum = result[24] != "" ? result[24] : t.RzNum;
         t.RwNum = result[23] != "" ? result[23] : t.RwNum;
         t.GrwNum = result[21] != "" ? result[21] : t.GrwNum;
         AllTicket.Add(t);
     }
     Ticket[] All = new Ticket[AllTicket.Count];
     int flag = 0;
     foreach (object t in AllTicket)
     {
         All[flag++] = t as Ticket;
     }
     return All;
 }

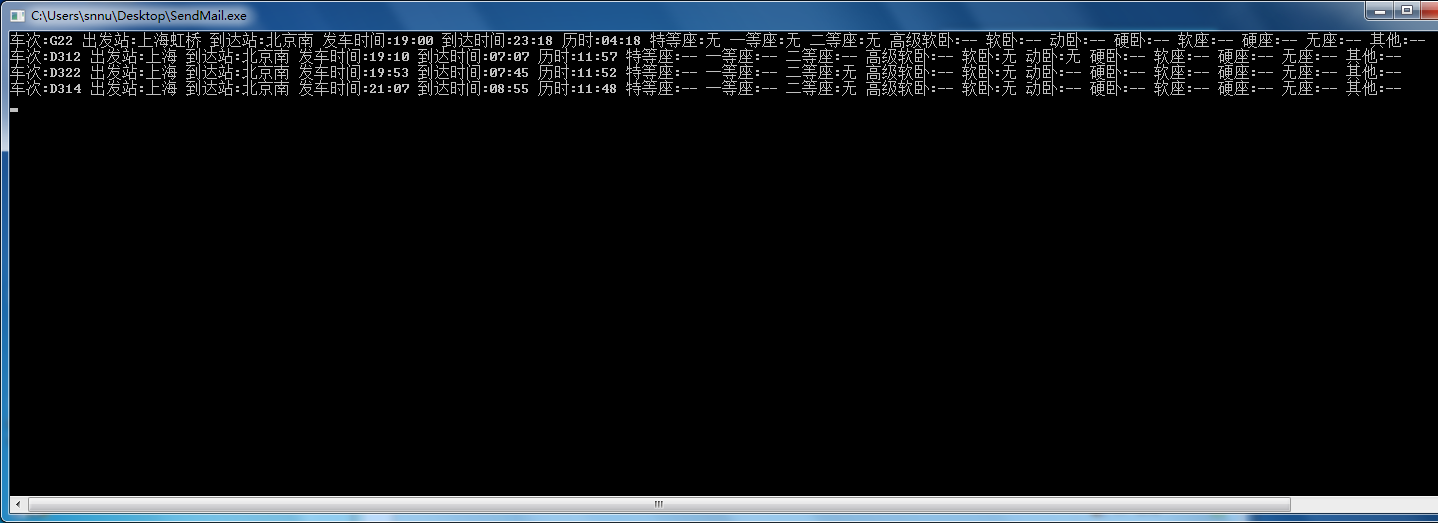

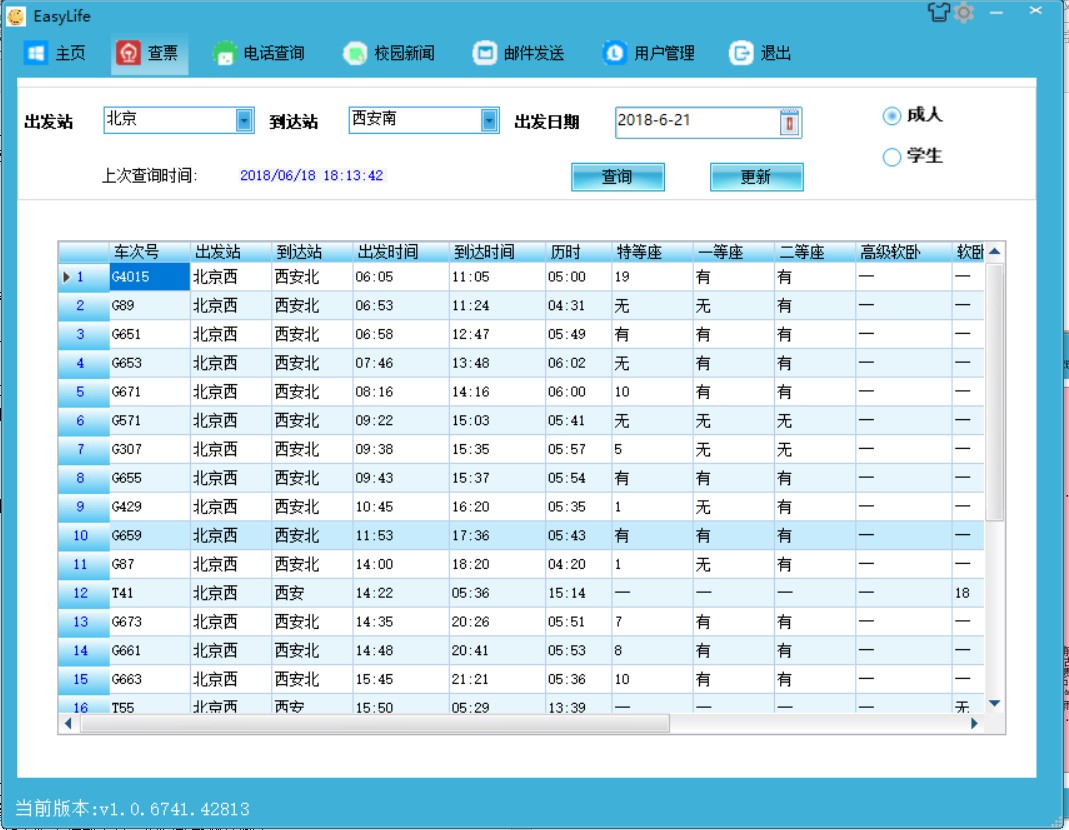

效果图



项目地址:EasyLife

参考博客

C#调用12306API做余票查询(该参考博客中的方法已不可用)

完整代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Net;
using System.Text;
using System.Text.RegularExpressions;
using System.Xml;

namespace Ticket
{
    class Program
    {
        public static void StationNameXml()
        {
            string nowpath = Environment.CurrentDirectory;
            if (Directory.Exists(nowpath + "/Data") == false)
                Directory.CreateDirectory(nowpath + "/Data");//创建新路径
            if (File.Exists(nowpath + "/Data/StationName.xml") == true)
                return;

            HttpWebRequest request;
            HttpWebResponse response;

            string url = @"https://kyfw.12306.cn/otn/resources/js/framework/station_name.js?station_version=1.9055";

            request = (HttpWebRequest)WebRequest.Create(url);
            request.Method = "GET";
            request.Credentials = CredentialCache.DefaultCredentials;
            request.UserAgent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36";

            string str = string.Empty;
            try
            {
                response = (HttpWebResponse)request.GetResponse();
                if (response.StatusCode == HttpStatusCode.OK)
                {
                    StreamReader sr = new StreamReader(response.GetResponseStream(), Encoding.GetEncoding("UTF-8"));
                    str = sr.ReadToEnd();
                    sr.Close();
                    response.Close();//关闭response响应流
                }
                else
                    throw new Exception();
            }
            catch (Exception e)
            {
                Console.WriteLine(e.Message);
            }

            string pattern = @"@\S{2,5}?[|](?<Name>\S{1,8}?)[|](?<Code>\S{3,5}?)[|]";
            Regex r = new Regex(pattern, RegexOptions.ExplicitCapture);

            XmlDocument xmldoc = new XmlDocument();
            XmlDeclaration xmldecl;

            xmldecl = xmldoc.CreateXmlDeclaration("1.0", "UTF-8", null);//加入XML的声明段落
            xmldoc.AppendChild(xmldecl);

            XmlElement root = xmldoc.CreateElement("", "Dict", "");//加入一个根元素
            xmldoc.AppendChild(root);

            MatchCollection mc = r.Matches(str);
            foreach (Match m in mc)
            {
                GroupCollection group = m.Groups;
                XmlNode node = xmldoc.CreateNode(XmlNodeType.Element, "Pair", null);

                XmlNode temp = xmldoc.CreateNode(XmlNodeType.Element, "Station", null);
                temp.InnerText = group["Name"].Value;
                node.AppendChild(temp);

                XmlNode temp2 = xmldoc.CreateNode(XmlNodeType.Element, "Code", null);
                temp2.InnerText = group["Code"].Value;
                node.AppendChild(temp2);

                root.AppendChild(node);
            }
            xmldoc.Save(nowpath + "/Data/" + "StationName.xml");
        }
        private static string StationCode(string StationName)
        {
            XmlDocument doc = new XmlDocument();
            doc.Load(Environment.CurrentDirectory + "/Data/StationName.xml");
            XmlNodeList data = doc.DocumentElement.ChildNodes;
            foreach (XmlNode node in data)
            {
                XmlElement xe = (XmlElement)node;
                XmlNodeList xnl0 = xe.ChildNodes;
                string s = xnl0.Item(0).InnerText;
                if (s == StationName)
                {
                    return xnl0.Item(1).InnerText;
                }
            }
            return string.Empty;
        }


       private static Ticket[] SpiderTicket(string date, string from, string to, string id)
        {
            HttpWebRequest request;
            HttpWebResponse response;

            string url = "https://kyfw.12306.cn/otn/leftTicket/query?leftTicketDTO.train_date={0}&leftTicketDTO.from_station={1}&leftTicketDTO.to_station={2}&purpose_codes={3}";
            url = string.Format(url, date, from, to, id);

            request = (HttpWebRequest)WebRequest.Create(url);
            request.Method = "GET";
            request.Credentials = CredentialCache.DefaultCredentials;
            request.UserAgent = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/64.0.3282.186 Safari/537.36";

            string str = string.Empty;
            try
            {
                response = (HttpWebResponse)request.GetResponse();
                if (response.StatusCode == HttpStatusCode.OK)
                {
                    StreamReader sr = new StreamReader(response.GetResponseStream(), Encoding.GetEncoding("UTF-8"));
                    str = sr.ReadToEnd();
                    sr.Close();
                    response.Close();//关闭response响应流
                }
                else
                    throw new Exception();
            }
            catch (Exception e)
            {
                Console.WriteLine(e.Message);
            }

            Dictionary<string, string> map=new Dictionary<string, string>();//保存返回的JSON串中的车站代码与车站名之间的映
            ArrayList AllTicket = new ArrayList();//所有的车票信息

            JObject jo = (JObject)JsonConvert.DeserializeObject(str);
            JToken record = jo["data"]["map"];
            foreach (JProperty item in record)
            {
                map.Add(item.Name.ToString(), item.Value.ToString());
            }

            record = jo["data"]["result"];
            foreach (string s in record)
            {
                string[] result = s.Split('|');
                Ticket t = new Ticket();
                t.TrainId = result[3];
                t.FromStation = map[result[6]];
                t.ToStation = map[result[7]];
                t.StartTime = result[8];
                t.ArriveTime = result[9];
                t.LastedTime = result[10];
                t.TicketDate = result[13];
                t.DwNum = result[33] != "" ? result[33] : t.DwNum;
                t.TzNum = result[32] != "" ? result[32] : t.TzNum;
                t.YdNum = result[31] != "" ? result[31] : t.YdNum;
                t.EdNum = result[30] != "" ? result[30] : t.EdNum;
                t.YzNum = result[29] != "" ? result[29] : t.YzNum;
                t.YwNum = result[28] != "" ? result[28] : t.YwNum;
                t.WzNum = result[26] != "" ? result[26] : t.WzNum;
                t.RzNum = result[24] != "" ? result[24] : t.RzNum;
                t.RwNum = result[23] != "" ? result[23] : t.RwNum;
                t.GrwNum = result[21] != "" ? result[21] : t.GrwNum;
                AllTicket.Add(t);
            }
            Ticket[] All = new Ticket[AllTicket.Count];
            int flag = 0;
            foreach (object t in AllTicket)
            {
                All[flag++] = t as Ticket;
            }
            return All;
        }
        static void Main(string[] args)
        {
            StationNameXml();
            string from = "上海";
            string to = "北京";
            Ticket[] All=new Ticket[50];
            All=SpiderTicket(DateTime.Now.ToString("yyyy-MM-dd"), StationCode(from), StationCode(to), "ADULT");
            for(int i=0;i<All.Length;i++)
            {
                Dictionary<string, string> map = new Dictionary<string, string>();
                map = All[i].getMap();
                foreach (object j in map.Keys)
                    Console.Write(j.ToString()+":"+map[j.ToString()].ToString()+" ");
                Console.WriteLine();
            }
            Console.Read();
        }
    }
}
相关文章
您的支持是我继续创作最大的动力！

欢迎关注我的其它发布渠道
